Industrial CCTV Installation: Complete Guide for Factories & Manufacturing Units
Site survey to handover, cabling and network infrastructure, NVR sizing, common mistakes, and two real factory installations — everything that goes into engineering industrial CCTV properly.
What This Guide Covers
Industrial CCTV installation is a defined engineering process — site survey, camera placement, cabling and network design, NVR sizing, installation, and testing — built for factories, not scaled up from a residential job.
- check_circleThe 10-step installation process, from site survey to handover
- check_circleHow to plan camera locations across production, gates, warehouse, and perimeter
- check_circleCat6, PoE, underground conduit, long cable runs, and surge protection explained
- check_circleHow NVR capacity and storage duration should actually be sized
- check_circleThe most common installation mistakes we're called in to fix
- check_circleWhat drives installation cost, and where to get a full breakdown
- check_circleTwo real factory installations — a 32-camera and a 49-camera deployment
This guide is the installation-focused deep dive in our factory CCTV resource — for the full commercial overview, see CCTV Surveillance for Factory.
What Is Industrial CCTV Installation?
Industrial CCTV installation is the process of designing, cabling, mounting, and commissioning a surveillance system across a factory, warehouse, or manufacturing facility — as opposed to installing a handful of cameras in a home or a retail unit.
The core difference isn't the cameras themselves. It's everything around them: cable runs that can stretch past 100 metres, network infrastructure that has to survive industrial electrical noise, recorders sized for 30–50+ channels instead of 4–8, and a physical environment with dust, heat, machinery vibration, and 24-hour operations. Industrial installation has to be engineered for that environment, not just scaled up from a smaller job.
Why Industrial CCTV Installation Is Different
A few things separate industrial installation from standard commercial or residential work.
1Scaleexpand_more
2Distanceexpand_more
3Environmentexpand_more
4Continuityexpand_more
5Infrastructureexpand_more
Skipping any of these considerations is usually where industrial CCTV projects go wrong — not because the cameras were the wrong choice, but because the infrastructure around them wasn't engineered for the site.
Industrial CCTV Installation Process
A properly executed installation follows a defined sequence. Skipping steps is where blind spots and rework come from.
Walk the facility
Map the layout, existing infrastructure, power points, and site constraints.
Security requirements analysis
Map what the client needs to see and why, before any camera is chosen.
Camera placement
Type and position planned area by area, catching blind spots on paper first.
Network planning
PoE switch count, placement, and bandwidth sized to camera count and resolution.
Cable routing
Paths planned to minimise run length and protect cabling from machinery and weather.
NVR/storage planning
Channel capacity and storage size calculated, not picked off a shelf.
Installation
Cameras, NVR, switches, and cabling installed exactly as planned.
Configuration
Resolution, motion zones, recording schedule, storage, and remote access set up.
Testing
Every camera and channel checked for image quality, night vision, and retention.
Handover
Client's team walked through the system, with documentation left behind.
Real Industrial Installation Engineering — Maigma Granite Exports
A 32-camera IP surveillance system was deployed at Maigma Granite Exports (Shoolagiri, Tamil Nadu) using Hikvision and Prama cameras with a 32-channel Hikvision NVR and a dual-monitor monitoring wall. The installation included Cat6 cabling with 100m+ cable runs, underground conduit, PoE/PoE+ infrastructure, and surge protection — engineered for a continuous industrial granite manufacturing environment. The system supports 24/7 remote and mobile access.
This is how the process works end to end — if you're ready to book the work itself, see our CCTV Camera Installation for Factory service page.
How to Plan CCTV Camera Locations in a Factory
Placement isn't about spreading cameras evenly — it's about mapping coverage to risk, zone by zone.
| Zone | What It Covers | Key Consideration |
|---|---|---|
| Production Floor | Process areas, machine-adjacent activity | Angles that avoid machinery or stock blocking the view |
| Entry & Exit Gates | Vehicle and personnel movement | Positioned for clear identification, not just motion |

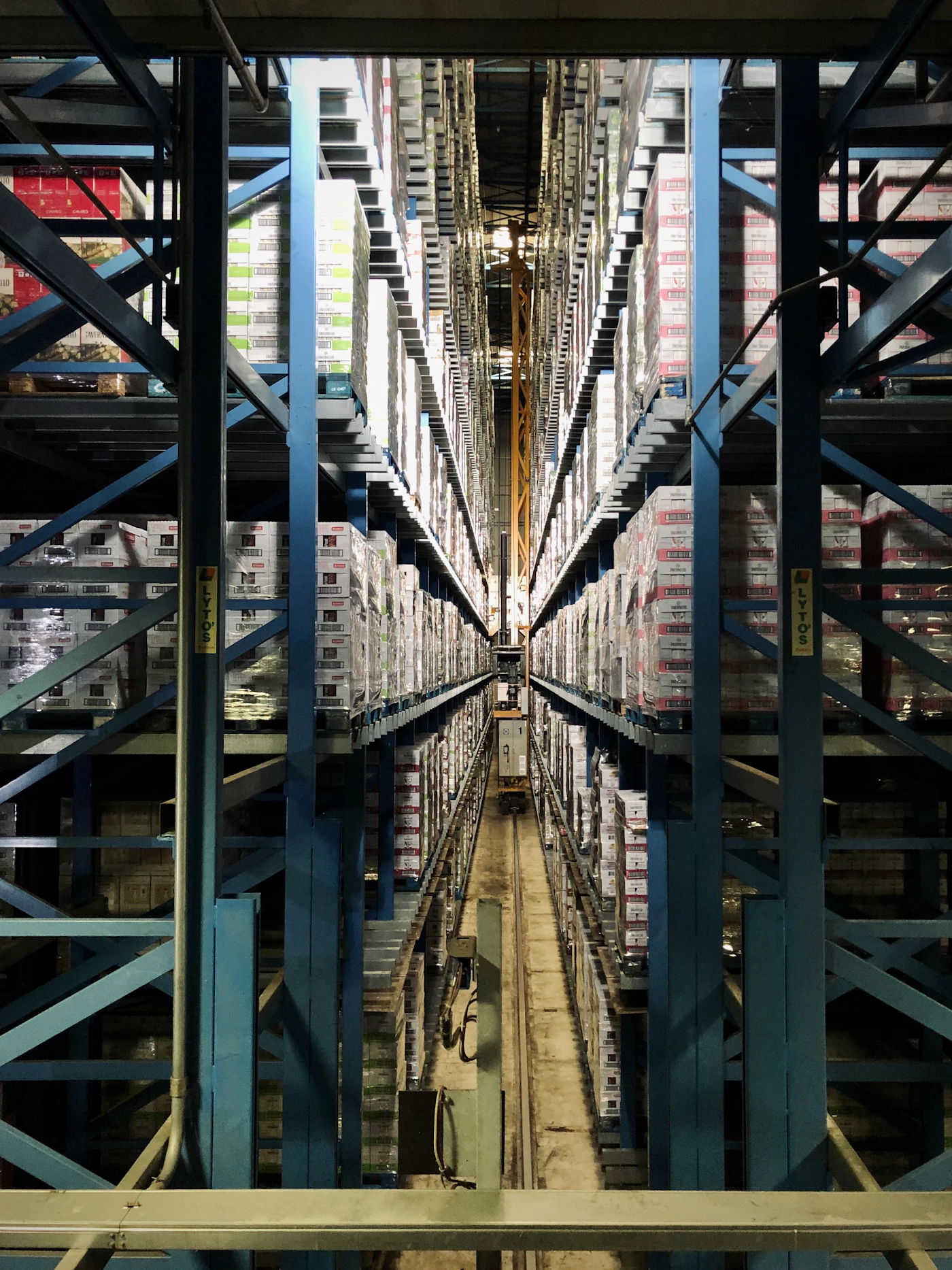

| Warehouse & Storage | Racking, loading docks, dispatch points | Highest inventory risk areas get priority coverage |
| Perimeter & Boundary | Compound walls, approach roads | Long-range coverage with adequate night vision |
| Offices | Administrative areas | Lighter coverage, less conspicuous camera type |
| Parking Areas | Employee and visitor vehicles | Covers both vehicle safety and traffic disputes |
| Server / Control Rooms | Restricted-access infrastructure | Dedicated coverage — this protects the CCTV system itself |
The goal is to walk the site with a layout drawing and mark every angle — checking for overlap where it matters (entry points, high-value storage) and acceptable gaps where it doesn't. This is also where field-of-view and mounting height get decided: too low, and a camera gets blocked by forklifts and stock; too high, and it loses facial or plate detail.
For the full technical methodology behind coverage calculation and layout — not just placement basics — see our Factory CCTV System Design guide.
Industrial CCTV Cabling and Network Infrastructure
Cabling is where most of the engineering difference between industrial and standard CCTV installation lives — and it's invisible once the job is done, which is exactly why it's worth getting right the first time.
Cat6
Cat6 cabling is the standard for industrial CCTV networks — it supports the bandwidth needed for higher-resolution cameras and resists interference better than older cable grades, which matters around industrial electrical equipment.

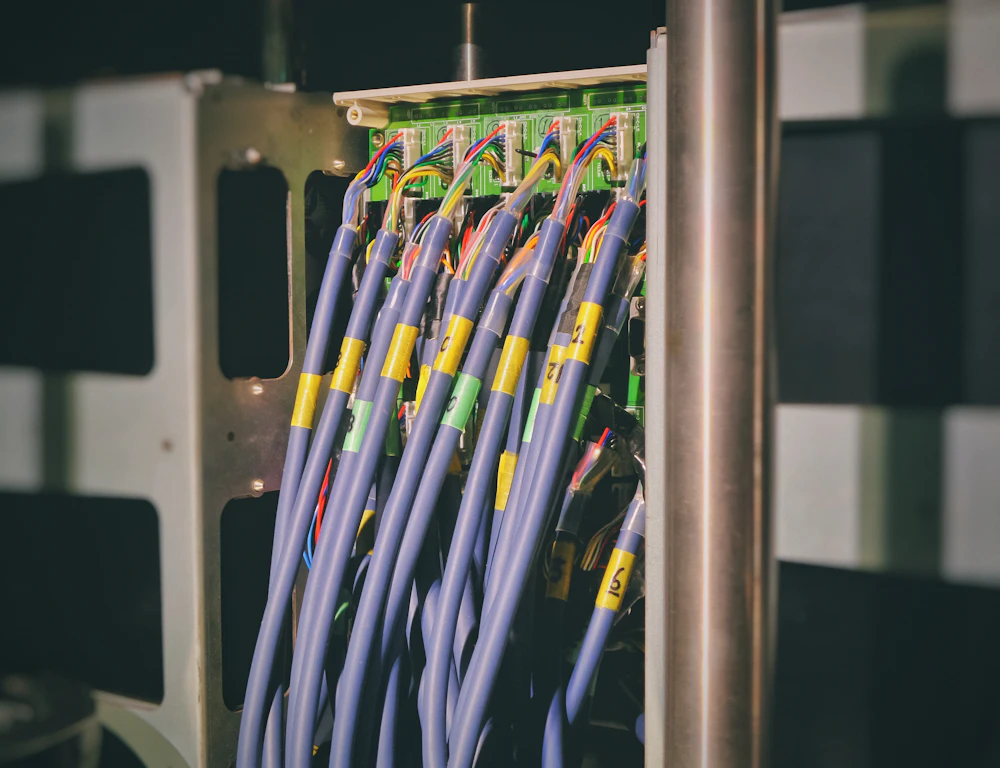

PoE
Power over Ethernet lets cameras receive power and data over a single cable, removing the need for separate electrical wiring to every camera position — simplifying installation and reducing points of failure.

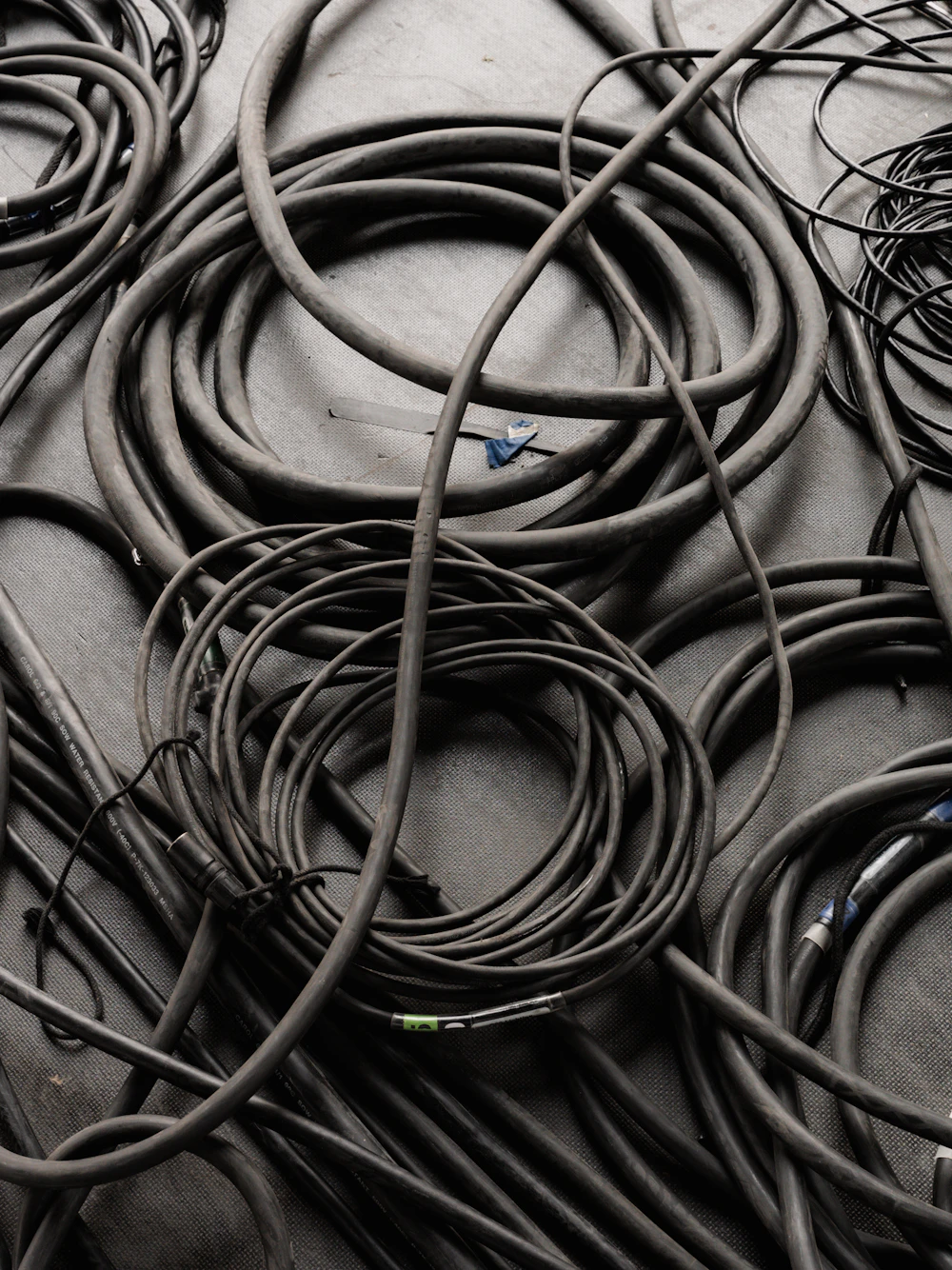

Underground Conduit
For long outdoor runs — across a yard, along a perimeter wall, between buildings — cabling is routed through underground conduit to protect it from weather, vehicles, and physical damage.

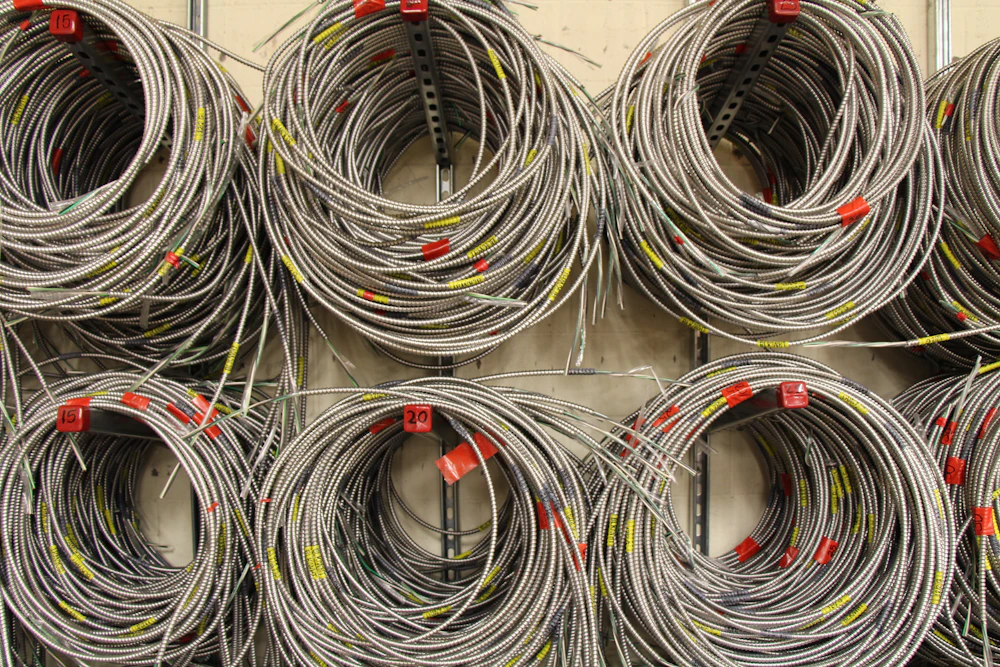

Long Cable Runs
Industrial sites routinely need cable runs beyond the standard 100-metre Ethernet limit — managed through PoE extenders, fibre backbone links, or strategically placed switches, not by ignoring the limit.

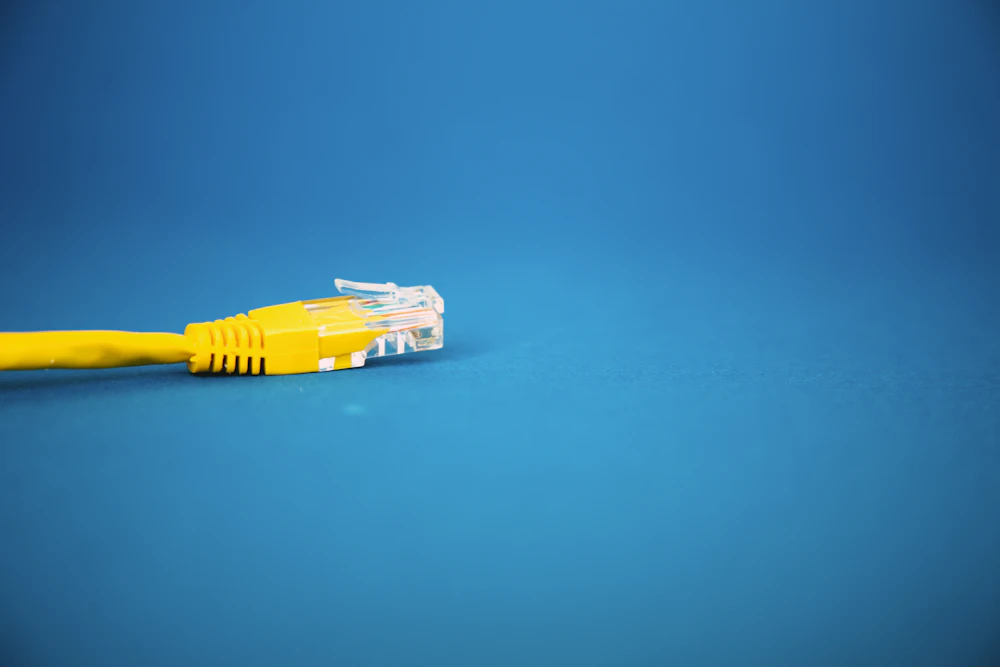

Surge Protection
Factories often have heavier electrical loads that generate power spikes. Surge protection at both the camera and NVR ends guards against damage — a step frequently skipped in lower-cost installs.
Site Planning Before Installation — Alfa PEB Manufacturing
Before any cabling or camera mounting began, a full site assessment was carried out across Alfa PEB Manufacturing's production units, storerooms, offices, server room, conference hall, and outdoor/perimeter areas. The resulting 49-camera layout was customised to the facility's actual risk areas, built around a zero-blind-spot objective — planning discipline, not just hardware, is what prevents coverage gaps in a multi-zone facility.
NVR, Storage and Monitoring
The NVR (Network Video Recorder) is the core of an industrial CCTV system — it records, stores, and serves footage from every connected camera. Sizing it correctly means accounting for three things: how many camera channels are needed now (with headroom for future expansion), how much storage is required based on resolution and retention period, and how footage will actually be monitored day to day.
For most factories, that monitoring setup includes an on-site display wall for security personnel, combined with 24/7 remote and mobile access so managers and owners aren't tied to a physical screen. Storage duration should be set based on operational and compliance needs — multi-month retention is common in industrial deployments, since incident investigation or insurance claims don't always surface within days of an event.
Common Industrial CCTV Installation Mistakes
Most CCTV problems we're called in to fix didn't start with a bad camera — they started with a shortcut taken during installation.
warningUndersized cabling infrastructureexpand_more
warningNo surge protectionexpand_more
warningPlacement decided on-site instead of plannedexpand_more
warningUndersized NVR or storageexpand_more
warningNo remote access configurationexpand_more
warningSkipping the testing phaseexpand_more
warningNo handover documentationexpand_more
Most of these are avoidable with a proper site survey and a planned installation sequence — which is exactly why that stage exists in the first place.
How Much Does Industrial CCTV Installation Cost?
Installation cost depends on camera count, cable run length, network infrastructure, NVR capacity, and site complexity — a small single-building facility and a multi-zone manufacturing plant will land in very different ranges. See our detailed Factory CCTV Installation Cost guide for a full breakdown and real deployment examples.
calculateGet a Cost EstimateIndustrial CCTV Installation Case Studies
Maigma Granite Exports
Shoolagiri, Tamil Nadu · 32-Camera InstallationAn industrial granite manufacturing facility needing CCTV engineered for continuous operation, not a residential-grade setup scaled up:
- 32 IP cameras — Hikvision and Prama, 2MP–8MP range with IR and WDR
- 32-channel NVR with a dual-monitor monitoring wall
- Cat6 cabling with 100m+ cable runs
- Underground conduit for outdoor and cross-facility routing
- PoE/PoE+ infrastructure and surge protection throughout
- IP66/IP67-rated camera housings for the industrial environment
- 24/7 remote and mobile access with multi-month storage
Alfa PEB Manufacturing
49-Camera InstallationA genuinely multi-zone facility, defined by planning as much as hardware:
- Full site assessment carried out before any installation work
- 49-camera IP CCTV system, customised layout per zone
- Coverage across multiple production units and storerooms
- Offices, server room, and conference hall included
- Outdoor and perimeter areas covered end to end
- Built around a zero-blind-spot objective
- Motion detection, intrusion alarms, and smart playback
Explore the Full Factory CCTV Guide
This page is the technical pillar for factory CCTV installation — these guides go deeper into the rest of the cluster.
CCTV Surveillance for Factory
The commercial hub for our factory CCTV cluster.
Best CCTV Camera for Factory
How to choose the right camera type for each area.
Factory CCTV Installation Cost
A full price breakdown with real deployment examples.
CCTV Camera Installation for Factory
Our installation service, process, and timelines.
Factory CCTV System Design
Step-by-step technical planning, from layout to storage.
CCTV for Manufacturing Plants
Industry-specific coverage guidance for manufacturing units.
Frequently Asked Questions
How is CCTV installed in a factory?add
Factory CCTV installation follows a defined sequence: site survey, security requirements analysis, camera placement planning, network and cable design, NVR/storage sizing, physical installation, configuration, testing, and handover.
How do you install CCTV cameras in an industrial area?add
Industrial camera installation accounts for longer cable runs, dust and weather exposure, and higher camera counts than standard installations — using IP-rated hardware, Cat6/PoE networking, underground conduit where needed, and surge protection throughout.
What cable is used for industrial CCTV?add
Cat6 is the standard for industrial CCTV networks, chosen for its bandwidth capacity and resistance to interference in environments with heavy electrical equipment.
How far can a CCTV cable run?add
Standard Ethernet/PoE runs are limited to about 100 metres, but industrial sites routinely need longer distances — managed through PoE extenders, fibre backbone links, or additional network switches placed along the route.
What is PoE CCTV?add
PoE (Power over Ethernet) CCTV cameras receive both power and data through a single network cable, removing the need for separate electrical wiring at each camera location.
How many cameras can an industrial NVR support?add
This depends on the NVR model — industrial deployments commonly use 32-channel or larger NVRs, sized with some headroom for future camera additions.
How do you protect CCTV cables in factories?add
Outdoor and cross-facility cable runs are typically routed through underground conduit, with surge protection installed at both the camera and NVR ends to guard against electrical damage.
How long does factory CCTV installation take?add
Timelines vary with camera count and site complexity, but a proper installation includes site survey, planning, cabling, mounting, configuration, and testing — rushing this sequence is where most installation problems originate.
How do you plan CCTV camera locations?add
Locations are planned zone by zone — production floor, gates, warehouse, perimeter, offices, parking, and server rooms — mapping coverage to risk rather than spacing cameras evenly across the site.
